Tips & tricks for architectural Visualisation & Verified Views for Planning Applications: Part 2
This part 2 series will focus mainly on proprietary rendering tools such as batch camera render; and on a fantastic tool/script for Verified Views Methodology/Planning
The following tips and tutorials are mostly related to
3d architectural visualisation.
However,
users from similar industries such as, Architecture and Architectural design may also find the following tutorials/tips useful.
Verified View/s methodology or Accurate Visual Representation (AVR):: Is an accurate Photomontage of a proposed design/building, using the Guidelines for Landscape and Visual Impact Assessment (GLVIA3).
Photomontage in 3d Visualization: Is the process of incorporating a 3d object/design/building into a 2d image/photo, while matching the camera angle/settings, position and the overall lighting depicted in the 2d photo.
This laborious process often requires the usage of a 2d and a 3d application.
For more information about this entire process, please check the PDF link below I have put together for gobotree.com
3d Photomontage Process: https://drive.google.com/open?id=1k7Ek-IyuQiGWZ7bvWcePXysAToLCgpsH
To create an accurate Photomontage/Verified View, the 3d Visualizer/specialist needs a: 3d context model to plot/plan and create the shots; a photo of the location in question; the survey data; camera information; a 2d and a 3d application to create the Final Verified View/s .
Some of the articles, The above Video, and tutorials depicted in this blog will take you through the entire process.
Planning Applications: These can be used to find out whether a proposed development is likely to be approved by the planning authority, before substantial costs are incurred developing a detailed design.
Planning Permissions: Is the legal process of determining whether proposed developments should be permitted. Responsibility for planning lies with local planning authorities (usually the planning department of the district or borough council). The legislation, policy and guidance that underpins planning in England can be found on the government's National Planning Practice Guidance

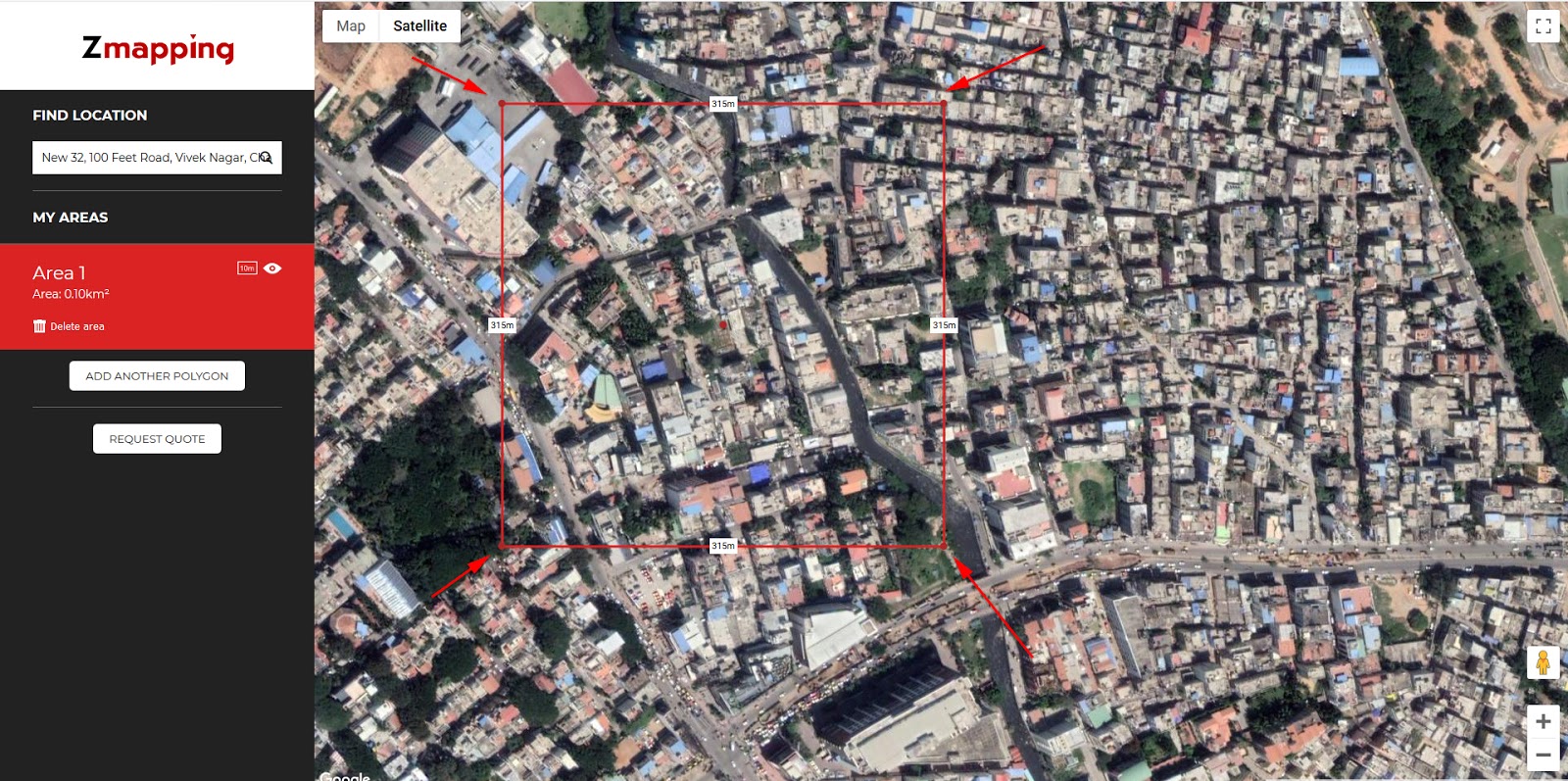

b)- In the "Find Location" section, type in the location and click on "Add Polygon" button
c)- Following that, click on "choose a type of polygon" and pick one from the list
d)- Once the type of polygon is chosen, click on "Click here to start plotting"
e)- Click anywhere on the satellite map
A square box should appear
f)-Hover over one of the polygon points until you see the finger mouse symbol
g)-Begin moving each of the points (if/when necessary) until you cover the desired area
h)- Once satisfied with your area, click on the "Request quote" button, fill in the details and "Get a quote".
You should receive the context model shortly after.
Once you receive the 3d context model from Zmapping, set up your camera views in 3ds max, to match the above mentioned proposed views,
The proposed new 3d building should also be inserted.
Send out the CG (computer Generated) "chalk renders" of the proposed views to the architects/developers, for revision/approval .
Once the camera views have been approved/signed off by the architects/developers, organize a Surveyor and a good Photographer to go on site to survey and photograph the agreed/signed off views.
Prior to sending the Photographer and the Surveyor to the site, you need to do the following first:
a)- Mark up the position/location, and the number of survey points you want on each of the agreed/signed off camera views ( mark up/circle around at least 10 survey points on each of the CG "chalk renders") .
b)- Ensure the Photographer chooses the ideal day/time to take stunning photos
Surveyor's Equipment Required
• Global Positioning System (GPS)
• Total Station (with good reflectorless EDM range)
• Precise Level
Field Survey Methodology
• It should be noted that some locations will often contain coincidental reference points and hence the work should be carefully analysed to prevent excessive back-tracking
• Camera Locations - To establish the position of a viewpoint, the surveyor must set up a GPS on it and record enough points to ensure a high level of accuracy.
• Reference points - To survey the various reference points, the surveyor should set up two temporary stations (TBMs) within view of each reference point and establish their location using the GPS. Once these co-ordinates have been established, the surveyor will set up a Total Station on the TBMs and take 3 reflectorless survey shots to the reference point in question.
Note: Where GPS positioning is not possible near to the required survey point – due to poor signal, for instance – the surveyor will set up his TBMs at the nearest position possible and traverse traditionally to a position where he can survey the point.
Data Processing & Delivery
GPS data is processed through Leica Geo-Office to acquire the OSGB36 co-ordinate system information and then processed to produce co-ordinate information for the surveyed points
Click on the MAXScript button from the main toolbar and choose to open a New Script.
If for some weird reason the script isn't working; try opening the spreadsheet file in a notepad program, and save it again out from the notepad program as, a csv file.
For more information about the overall process, please visit the following websites:
https://zmapping.com/
http://www.v-real.co.uk/verified-view
Verified Views Photographer: http://www.ianhumes.co.uk/
https://www.sunsurveyor.com/
Landscape Institute: https://www.landscapeinstitute.org/visualisation/
https://www.youtube.com/watch?v=zzKOBtTbUmg
https://store.insta360.com/product/one_x?insrc=INRZEJ7
http://www.edisurveys.co.uk/
https://www.sccssurvey.co.uk/surveying-equipment-instruments/lasers.html
https://www.rbkc.gov.uk/idoxWAM/doc/Other-890013.pdf?extension=.pdf&id=890013&location=VOLUME2&contentType=application/pdf&pageCount=1
GLVIA (Guidelines for Landscape and Visual Impact Assessment)
In addition, it's worth checking its Visualisation page/tab guidelines
Government Pre-Application Advice
Mandatory Documents
I hope you have found this article somehow useful!
(Full HD with custom captions/subtitles)

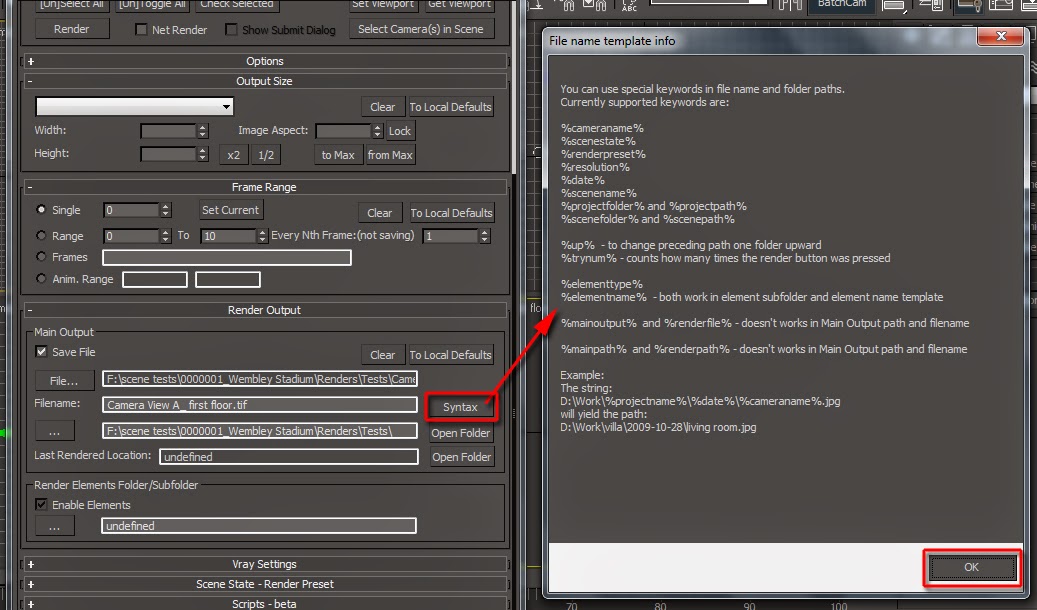

BatchCameraRender
Feel free to name the folders and/or sub-folders differently, if desired
As mentioned earlier, every time a new value or preset is entered,
one should click on the Refresh button to update the changes.
