Photorealistic Rendering: Is the Process or Art of making a typical Computer Generated Image/render (CGI) look indistinguishable from a real photo.
To achieve this, users often need to possess the skills and the"eye" to appreciate good photography, cameras, composition, lighting, shaders, materials, 3d modelling, rendering and have some post-production skills.
Some of the articles, Videos and Tutorials depicted here will help you achieve truly photorealistic renderings.
Lighting a scene realistically is one of the most challenging aspects of producing photorealistic renderings.

The following article/tutorial will focus mainly in easy techniques to help users achieve acceptable results, even when working on relatively bare/simple scenes.

One of the preliminary steps often taken to light up a scene realistically, is to create a clear definition between dark and bright areas: Depth.

To achieve this, simply ensure that, there’s enough distance between each light in the scene.

Also, test render the effect of each light created, especially when a key parameter is changed.

Photorealistic rendering: mental ray- It’s common practice to create photometric Target lights in the Left or Front viewport to set its directional point (e.g. downwards).

Once the first light had been created, go to the Modify command panel and set its shadow type to Ray Traced Shadows, to enable mental ray to trace shadows more accurately.

Also, the distribution type is often set to photometric web, followed by locating and choosing the appropriate IES web file.

Once the light is created, one should remember to disable the Targeted function. This action will later prove crucial when copying /instancing lights across the scene.

While it may take slightly longer to render, soft shadows are commonly used to make the renders look more realistic. To create soft shadows simply scroll down to the Shape/Area shadows rollout parameters and change the Emit light from (shape) to Disc type.

Its Radius controls the shadows’ softness: Sharp shadows= low values; Soft shadows= high values.

To control its intensity, simply open the Intensity/Color/Attenuation rollout, and pan down to Dimming group, followed by enabling the Resulting Intensity and increasing its value.

Test render each value tweaked to achieve the desired result.

To quickly test render, one can simply use a white override material (with its reflectivity set to 0.0)  for the sole purpose of creating the correct amount of depth in scene (e.g. dark and bright areas of the scene).

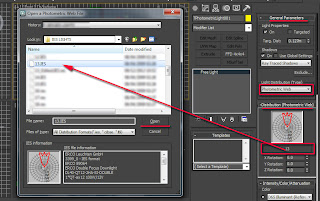

To use any specific IES light, one can choose from any of the pre-defined (Select Template) list; or by loading it from the Distribution (Photometric) rollout toggle. One can preview the IES physical distribution From the Open a Photometric Web file dialog and/or from the Distribution (Photometric) thumbnail.

Furthermore, users can also decrease the image Sampling Quality and the overall render settings to speed up the test rendering process.

The idea behind this technique is to prevent users from spending too much time test rendering the lights with all the materials and reflections enabled.

Once satisfied, simply begin to copy (instances), test render and place the lights accordingly in the scene.

Photorealistic rendering: In Vray- Users often open the Create command panel and choose VRay from the drop down list.

Next, one can create the VRayIES light by simply selecting its respective button first, followed by clicking on the VRayIES button next. Finally click in the Left or Front viewport, and drag its target downwards to create it.

Once the target of the light is set, go to the Modify command panel and disable its targeted function. As mentioned earlier, this action will enable the user to easily copy/instance lights across the scene.

Next, locate and load the appropriate IES light file by clicking on its toggle. To preview the IES web file in the viewport, one can simply create a default Max photometric light, turn it off and use its Distribution (photometric web) rollout for the sole purpose of previewing the IES web file inside 3Ds Max.

Alternatively, one can use the IES generator software.

To help pick up tiny shadows (e.g. grass, etc.), one should reduce the shadow bias values.

As mentioned earlier, while soft shadows may increase the render times slightly it will also help make the renders more realistic.

To enable soft shadows with VRayIES lights, simply do the following:

Open the notepad dialog by typing in the word notepad, on the windows start up text field.

Next, locate the relevant IES file in your computer folder, followed by dragging and dropping it into the notepad dialog. Its numerical values should appear.

To soften the shadows, one should only change three of its values. These values are often the three zeros that appear after the numbers 1, 1 and 2.

Change those three zeros to 0.5; 0.5 and 0.5.

It’s worth noting that, the suggested values work well for my scenes. However, feel free to experiment with different values, if desired.

To control its intensity, simply increase its power values.

As mentioned earlier, users should test render each value tweaked to achieve the desired result.

As in mental ray, one can also use a white override VRay material (with its reflectivity set 0.0) for the sole purpose of creating the correct amount of depth in scene (e.g. dark and bright areas of the scene).

To further decrease the rendering times whilst test rendering the lights in Vray, simply decrease the    Sampling Quality and the overall render settings.

As previously mentioned, the idea behind this technique is to prevent users from spending too much time test rendering the lights with all the materials and reflections enabled.

Once satisfied, simply begin copying, test render and place the lights accordingly in the scene.



Test rendering each light created with Vray or mental ray will enable users to preview their effect in the scene, and subsequently tweak them further, if necessary; thus preventing the common mistake of overexposing/scorching the 3D scene with too many lights, and/or having the lights too close from one another.

It’s worth noting that, prior to lighting up a scene, most materials and their basic parameters (e.g. UVW Mapping, etc.) should be applied to their respective objects first.

While creating the correct amount of depth in scene will help make the renders more believable, the light colours will also prove even more crucial in achieving that ultimate photorealistic look.

The following examples will help demonstrate how to quickly apply realistic colours of a photo to a light source in both Vray and mental ray.

In addition to applying IES lights to a scene, one can make the renders look more realistic by picking colour/s of a real photo reference.

To do so, first load the relevant photo in the scene (e.g.  Rendering > View Image File) .

Next, select a light and open the Modify command panel.

Photorealistic rendering: In mental ray, scroll down to the Intensity/Colour/Attenuation rollout.

Click and hold the Filter Color swatch.  Its Color Selector: Filter Color dialog should appear.

Click on its sample screen colour button and pick any part of the loaded photograph. To mix colours, simply hold down the Shift key and continue picking

Photorealistic rendering:In Vray, scroll down, followed by selecting and holding its Color swatch to enable the Color Selector: Filter Color dialog.

Click on its sample screen colour button and pick any part of the loaded photograph. To mix colours, simply hold down the Shift key and continue picking.

In addition to picking and using the colours of a real photo, production companies also use a blurred version of the same photo as light source to help make the render more realistic.

It’s worth noting that, while this methodology is utterly effective, it also increases the rendering times slightly.

Photorealistic rendering:In mental ray, to create the additional light/s with a blurred map, simply create a new spherical photometric light using some of the techniques covered earlier.

To change the light to Uniform Spherical, simply open the Modify command panel and expand its General Parameters rollout.

In the Light Distribution (Type) group, choose the Uniform Spherical from its drop down list. This   light distribution type will provide users with the numerical value to be added later in the mental ray Light shader.

Next, scroll further down to the mental ray Light Shader rollout and enable its function.

Please note that once this function is enabled; all the default light parameters are automatically switched off. So even when the light is physically turned off the light shader parameters will still affect the scene.

To disable it, simply uncheck the Enable function.



To plug a light shader, simply click on its toggle, and double click on the Light point type to choose it from the Material/map Browser dialog list.

To view its parameters, open the Material Editor dialog first by pressing the M button.

Next, drag and drop the light shader toggle into an empty material editor slot; followed by choosing the Instance type, from Instance (copy) Map dialog.   Its parameters should appear on the material editor dialog.

Most of its parameters are self-explanatory. Before plugging a blurred map to its Color toggle, enable the Shadows and the Attenuation function.

The Attenuation function determines the furthest distance of the light source from its original point.

The Attenuation Start value should always be 0.0, unless there’s a specific requirement.

Users often use the Radius values from the Shape/Area Shadows rollout parameters to preview the Attenuation End value in the viewport, without having to test render.

VRay users can also use this value to preview the size of the light source; followed by turning it off once satisfied.

When using light sources to cast colours of a real photo onto surfaces, users should always place the light/s in a position where it will affect as many surfaces as possible.

For instance, in an interior scene it’s common practice to place the light between the floor and ceiling of each floor. In addition, the light should be slightly dimmed to prevent bleaching areas of the scene.

Its sole purpose should be to create colour variations in the scene with a faint brightness; and to also break up even specular patterns.

Next, locate the relevant blurred image and load it in the Color toggle. When possible, always use an HDR (high dynamic range) spherical panoramic image. If the shot happens to be a photomontage, one should seriously consider taking a panoramic photo of the environment in question.

Otherwise, one can simply use a standard non panoramic blurred JPEG image.

To blur an image, simply open it Photoshop and use the Gaussian Blur filter. The reason for blurring an image is to avoid having very well defined colour patterns, sharp shadows and increased rendering times.

Once the image is loaded, if the original bitmap is panoramic, change its Coordinates parameters to Environment type, and the mapping to Spherical Environment.

In addition, one can also decrease or increase its default Blur values to about 100. Blurring it to 100 will decrease the rendering times dramatically.

Loading a sharp image and blurring it in 3ds Max with the Blur function will never yield good results. The rule of thumb is to load a pre blurred image and blur it further in Max to 100, if necessary.

To control image intensity, simply scroll down and open its Output rollout parameters.

Also, increase its RGB Level value accordingly by test rendering with the Material Override enabled.

To clearly see the immense benefits of this methodology, the following images will depict examples of a very simple scene lit without a mapped image, with a mapped image, with an additional IES light source and an IES light on its own.

Photorealistic rendering: In Vray, to create a spherical light, one is required to first create a sphere primitive, with the desired proportions.

Next, create a VRayLight object using some of the steps covered earlier. Open its Modify parameters and choose the Mesh type from its dropdown list.  This light type will allow the user to plug a blurred image to its toggle. See fig. 41 and 42

Scroll down to its Options group and enable the following options:

Cast shadows

Invisible- This function will make the light object invisible to the camera

Store with Irradiance map- When using the light source as Mesh, the rendering times will increase dramatically. Enabling this function will help reduce the rendering times massively. Otherwise, one can disable it.

This function will only work if the Irradiance map is being used in the V-Ray:: Indirect Illumination (GI) rollout parameters.  For this reason, the Irradiance map parameters should be set above the minimum required.

Affect reflections- This function is often disabled to prevent having the light being visible in reflections.

While the above mentioned settings often work well in my scenes, feel free to try different ones, if desired.

Scroll further down to the Texture group, and load the desired image in its toggle as previously covered.

To view its parameters, simply open the Material Editor (M) first, followed by dragging and dropping the toggle into an empty material editor slot.
Choose the Instance copy method, and use similar parameters to the ones covered earlier.

If necessary use the Cropping/Placement handles to choose specific areas of an image to be used as a light source.
It's also common to tweak with the "Bitmap" "Offset" coordinate values in "V" and/or "U" to help target specific areas of the bitmap.

Finally, scroll further down to the Mesh light options and select its toggle, followed by picking the relevant mesh in the scene. Its intensity can be controlled through the image’s RGB Level value, or/and from the light’s Physical Multiplier value.

Note: When implementing the above mentioned technique using the VRay mesh light, the default  "Sampling" "Subdivs" value of 8 may yield inaccurate/unrealistic shadows. To correct this, simply increase the "Subdivs" to 64.
While this value will produce realistic/accurate shadows, it will NOT increase the rendering times due to the "Store with Irradiance map" function being enabled.      Furthermore, when sending the final render, the "Indirect Illumination" "Irradiance map " values need to be set to "Medium" or "High".



All the spherical lights depicted in the 3D scene below, were created using the techniques highlighted earlier, for VRay and mental ray.



Note: If the bitmap colours emitted by the sphere light are not prominent enough in the scene, simply use the "Color Correction" procedural map on top of the main bitmap; and increase its "Saturation" value until satisfied.
To apply it, simply open the "Material/Map browser" dialog and choose it from its list. This topic was covered in this post HERE.
Alternatively, increase the saturation in Photoshop and re-save the main bitmap.


To implement the same technique to emulate interior studio lighting or a light being emitted from a self-illuminated display screen, simply create a VRayLight object.

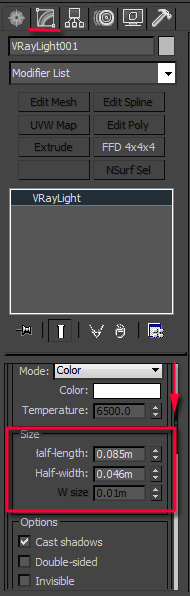

To control its physical size, open the Modify command panel, scroll down to the Size group and tweak with its Half-length and Half-width values.

To plug an image to the light, scroll down to the light’s Texture group and click on its toggle to enable the Material/Map Browser dialog.

Photorealistic rendering: In mental ray- To emulate a similar effect in mental ray (e.g. Interior studio lighting or a light being emitted from a self-illuminated display screen), simply create a mr Sky Portal object.

To control its size, open the Modify command panel, scroll down to the Dimensions group and tweak with its Length and Width values.

 The mr Sky Portal is set to Use existing Skylight by default. This option only works when a Skylight object is already in the scene. The mr Sky Portal helps to re-direct the Skylight rays through where the mr Sky Portal is positioned (e.g. through open windows, etc).

To use the mr Sky Portal for interior scenes, one is required to enable the Custom function first, and click on its toggle; followed by double clicking the Gamma & Gain shader from the Material/Map Browser dialog list.

To edit the Gamma & Gain shader, simply open the Material Editor first, followed by dragging & dropping it onto an empty material editor slot. In the Instance (Copy) dialog, choose the Instance method and OK to close it.

Its parameters should load up. To plug a texture/HDRI simply click on the Input toggle and locate the relevant image.

Its multiplier value can be controlled through the Gain (multiplier) values; or through the image’s RGB Level as previously shown.  In addition, one can also use the mr Sky Portal’s On Multiplier value (1.0 by default) to help bump up the intensity of the light.



The Reverse gamma correction (De-Gamma) function is enabled by default; which means brighter values are equivalent to high negative values. To reverse this, simply disable it.

One can also control the Gamma values of the image by tweaking with the Gamma values.   See fig. 57 and 58

All the rectangular lights depicted in the 3D scene below, were created using the techniques highlighted earlier, for Vray and mental ray.

To emulate the Payless self-illuminated display screen on the right hand side; I have simply created an object with a Payless self-illuminated bitmap assigned to the object, and placed a rectangular light in front of it to emit rays of the same image using the techniques covered earlier.

Finally, one can also use the same approach with Skylight objects, when creating external shots.

Photorealistic rendering:In mental ray: When using the Daylight System, users often disable the Skylight option and create a separate Standard one.

The Standard Skylight object provides users with the flexibility to independently plug custom shaders, colours and images to its toggle.

Alternatively, users can enable the Use Scene Environment option, to extract the sky data from the Environment Map toggle (press 8 to bring up its dialog).

For Photomontages and film shots, users often plug the Environment/Background Switcher shader to its Environment Map toggle.

For further information about this shader, please check this useful article HERE.

Photorealistic rendering:In Vray- Users are simply required to create a standard VRayLight object as previously shown, and change its Type to Dome.  Dome light is equivalent to Skylight object.

As with most VRay lights, users can control its intensity with the Multiplier values.

To plug an image, scroll down to its Texture group and click on its toggle to bring up the Material/Map Browser dialog. Often some users apply a standard image; and most professionals prefer to use the VRayHDRI shader.

To edit the VRayHDRI parameters, first open the Material Editor (M), followed by dragging and dropping it from the Texture toggle onto an empty material editor slot.                                                  Choose the Instance method.

Once the VRayHDRI parameters are loaded, click on its Browse button to locate and pick the relevant HDRI file.

While the Skylight shadows should yield diffused results, some users prefer to turn off the VRaySun object and use the Dome light to generate both direct and indirect shadows (e.g. diffused shadows).

Most HDR images come with a reflection image (e.g. sharp), and the environment image (e.g. blurred to emit diffused light). To generate both direct and indirect shadows, one is required to use a sharp HDRI.

Users often tweak with Horiz. rotation and Vert.rotation values to control its position in the Material Editor slot thumbnail.

Also, the Overall mult. value will help control the brightness of the light/scene.

Depending on the results intended, most users choose the Map type to be a Spherical environment.          For acceptable results, one is required to have the Irradiance map and the Light cache parameters very high.

Furthermore, one should copy and paste/ instance these VRayHDRI parameters into the Environment Map toggle.

To override either the GI Environment (diffused light) or what’s being reflected in the scene Environment Map toggle; one should open the Render Setup (F10). In the V-Ray tab, expand the V-Ray:: Environment  rollout and use one or both of its  parameters(e.g.  GI Environment (skylight) override and/or the Reflection/refraction environment override).

Once the lights and colours have been signed off, one can then disable the material override to finalize tweaking the materials/ reflections/glossiness, and perhaps fine-tune minor light settings (e.g. boost up or decrease certain values).

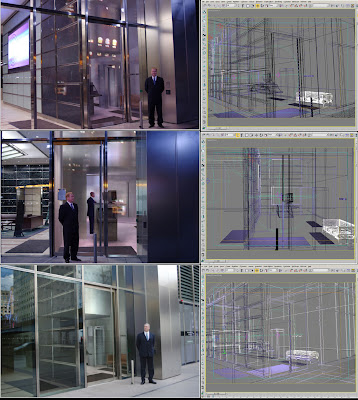

The 3d images below depict some of many results I have personally produced, with Vray and mental ray whilst using the techniques covered in this article.



I hope you have found this article interesting!

UE5 real-time Web Application for IES lights and other Lighting fixtures/conditions

Video Captions available (CC)

My Unreal Engine Real-Time Rendering App for any 3d products and complex scenes

                                                         Video Captions available (CC)

                     Unreal Engine 5: 3d Dimensions & Ruler measuring tools blueprints, in game

                                                      Video Captions available (CC)



Unreal Engine 5: 3D Notepad blueprints & Instant High Res renders with Post-Production Effects

                                                      Video Captions available (CC)

Product Rendering Web Application in Real-Time with Unreal Engine

        Unreal Engine: My New Flower/product Web Application

Video Captions available (CC)

Finally, I have just published a New Book with Taylor & Francis/CRC Press, entitled,

V-Ray 5 for 3ds Max 2020: 3D Rendering Workflows

 Click on the image below to find out more about my new book.



Checkout below my other Courses with High Resolution Videos, 3d Project files and Textures included.

Course 1: Exterior Daylight with V-Ray + 3ds Max + Photoshop

Course 2: Exterior Night with V-Ray + 3ds Max + Photoshop

 Course 3: VRay 3ds Max Interior Rendering Tutorials

Course 4: Interior Daylight with V-Ray + 3ds Max + Photoshop

Course 5: Interior Night with V-Ray + 3ds Max + Photoshop

Course 6: Studio Lights with V-Ray + 3ds Max + Photoshop

Course 7: Planning Applications for Verified Views

Course 8: 3d People + 3ds Max + VRay + Photoshop

Also, please Join my Patreon page or Gumroad page to download Courses; Project files; Watch more Videos and receive Technical Support. Finally, check my New channels below:



Important Terminologies & Descriptions:

3d Rendering: Is the process of converting the three dimensional (3D) data seen in a 3d scene into 2D image/s (rasterized).
The rasterization process include, the rendering parameters, the rendering engine, lights, 3d models, textures, shaders, and other effects.
3D renders can be a sequence of animated objects/effects/cameras, or a single frame with a still camera and object/s.
Some of the articles, Videos and Tutorials depicted here will take you through the process of rendering.

Post-Production: Is the process of creating effects or/and results after/post the main process.
This terminology can be used to describe the results (post-production) of main processes such as 3d renderings  and/or filming a scene.
The post-production often takes place in applications such as Photoshop, After Effects, Nuke, etc.
Some of the articles, Videos and Tutorials depicted here will take you through the process.

Architectural Rendering, or architectural illustration/Visualization, is the art/process of creating two-dimensional images or animations depicting the attributes of an architectural design, while using state of the art applications such as, Autocad, 3ds max, VRay, Cinema 4d, Blender, Maya, Corona, Photoshop, etc
Some of the articles, Videos and Tutorials depicted here will take you through this amazing process.


Textures: Is a term often used to describe photographed  2d images to be later used in a toggle of a shader or procedural map.
Textures can be used in the Diffuse toggle, Reflect, Glossy effects, Bump, Displacement, etc.

Some of the articles, Videos and Tutorials depicted here will take you through the process of applying textures.

Materials: Is a term often used to describe maps, textures,procedural maps or shaders, depending on the context the term is being used.
Some of the articles, Videos and Tutorials depicted here will take you through the process of applying materials.


Procedural materials: Is a term often used to describe maps with editable/proprietary parameters/functions.
Some of the articles, Videos and Tutorials depicted here will take you through the process of applying procedural materials.


Shaders: Is a term often used to describe complex materials with functions and procedural maps created for a specific purpose.
Some of the articles, Videos and Tutorials depicted here will take you through the process of applying shaders.


Studio Lights: They are fundamental in the process of creating appealing images/renders.
Lighting determines not only the brightness and darkness, but also the tone, mood and the atmosphere of a scene.
Hence the importance to control and manipulate the lights accordingly, in order to fully capture the textures and the vibrancy of your objects.

By distributing the shadows and the highlights accurately, you can achieve truly appealing images/renders.

V-Ray: Is a rendering engine that uses global illumination algorithms, including path tracing, photon mapping, irradiance maps and directly computed global illumination.

Furthermore, it is used as a commercial plug-in for third-party 3D computer graphics software applications such as 3ds max, Maya, Houdini, Blender, Nuke, etc,  for visualizations and computer graphics in industries such as media, entertainment, film and video game production, industrial design, product design and architecture.

3ds Max: Autodesk 3ds Max, formerly 3D Studio and 3D Studio Max, is a professional 3D computer graphics program designed to create 3D animations, models, games and images.

In addition, it has modelling, animation and movie effects capabilities, frequently used by video game developers, TV commercial studios and architectural visualization studios.

3ds Max also features shaders, dynamic simulations, particle systems, plug-ins, and much more, with its own scripting language.

Adobe Photoshop: Photoshop is a powerful raster based graphics program produced by the Adobe Corporation.

It is widely used for a variety of photo/image editing purposes worldwide. The program has a huge number of filters, functions, plug-ins, scripts, etc.
In addition, there is a huge online support for this software, and countless online sites with tips and tutorials.
Finally, there are readily available books, online/college courses, and its full documentation at Adobe.com

A 3d Visualiser works within the realm of 3d visualization, a sector of the Computer Graphics Industry (or CGI) that is primarily concerned with the visual presentation of design concepts and ideas. And a company within the 3d visualisation sector offers to its customers (among many things) 3d Visualization Services.

Also check:

Realistic materials



Post-production techniques

IES lights

Self-illuminated materials

Architectural Visualisation Tips & Tricks

FoxRenderfarm

www.arroway-textures.com

Renderpeople

Gobotree
